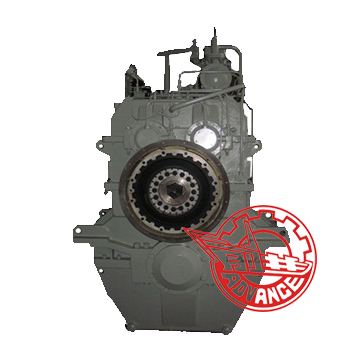

Marine Gearbox HCW1100

Browse similar products

Previous Page : Marine Gearbox HCT800

Next : Marine Gearbox HCW1400

  • Product Name: Marine Gearbox HCW1100

Back

Marine Gearbox HCW1100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and three-stage transmission, featuring in compact structure, extra large ratio, and convenient in dis- and reassembly and maintenance.

Input speed 1500-1800r/min
Reduction ratio 15.882 Trans. capacity 0.931kw/r/min
16.546 0.931kw/r/min
17.243 0.894kw/r/min
17.973 0.857kw/r/min
18.740 0.822kw/r/min
19.547 0.788kw/r/min
20.395 0.756kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 300KN
Center distance 625mm
L×W×H 1143x1630x2550mm
Net weight 6000kg
Flywheel Depend on engine flywheel
Bell housing No

Marine Gearbox HCW1100 is suitable for fishing, tug and various engineering boats.
