Marine Gearbox HCD2700

Browse similar products

Previous Page : Marine Gearbox HCD2000

Next : Marine Gearbox HCD400A

  • Product Name: Marine Gearbox HCD2700

Back

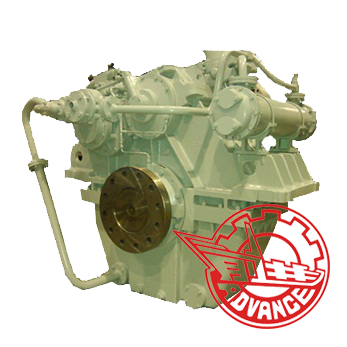

Marine Gearbox HCD2700 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 500-1400r/min
Reduction ratio 3.65、4.042、4.5、5.05 Trans. capacity 2.05kw/r/min
5.476 1.96kw/r/min
6.105 1.7kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 280KN
Center distance 630mm
L×W×H 1400x1780x1530mm
Net weight 6000kg
Flywheel Depend on engine flywheel
Bell housing NO

Marine Gearbox HCD2700 is suitable for large fishing, tug and various engineering boats.
