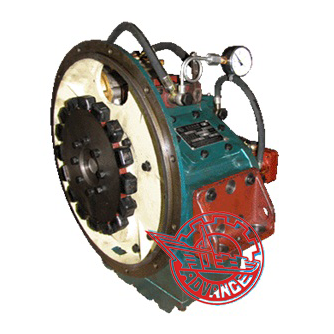

Marine Gearbox MA125

Browse similar products

Previous Page : Marine Gearbox MA100

Next : Marine Gearbox MA142

  • Product Name: Marine Gearbox MA125

Back

Marine Gearbox MA125 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.

Input speed 1500-3000r/min
Reduction ratio 2.03、2.46 Trans. capacity 0.020kw/r/min
3.04 0.018kw/r/min
3.57 0.016kw/r/min
4.05 0.014 kw/r/min
4.39 0.013 kw/r/min
4.70 0.011 kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 5.5KN
Center distance 125mm
L×W×H 291×454×485mm
Net weight 115kg
Flywheel SAE11.5、10
Bell housing SAE2、3、4

Marine Gearbox MA125 is suitable for small fishing, transport, traffic and passenger boats.
