Marine Gearbox MA100

Browse similar products

Previous Page : Marine Gearbox J300

Next : Marine Gearbox MA125

  • Product Name: Marine Gearbox MA100

Back

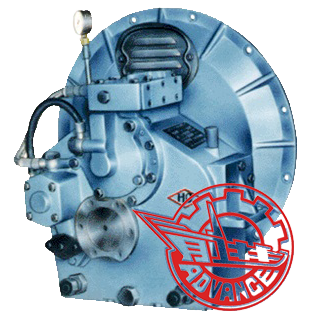

Marine Gearbox MA100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.

Input speed 1500-3000r/min
Reduction ratio 1.60、2.00 Trans. capacity 0.009kw/r/min
2.55、3.11 0.007kw/r/min
3.59、3.88 0.006kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 3KN
Center distance 100mm
L×W×H 236×390×420mm
Net weight 75kg
Flywheel SAE11.5、10、7.5
Bell housing SAE3、4、5

Marine Gearbox MA100 is suitable for small fishing, transport, traffic and rescue boats.
