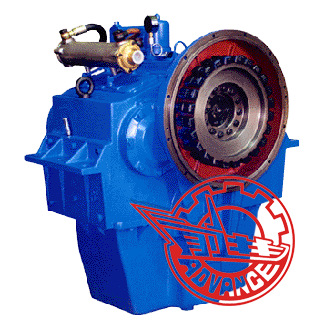

Marine Gearbox J300

Browse similar products

Previous Page : Marine Gearbox HCW800

Next : Marine Gearbox MA100

  • Product Name: Marine Gearbox J300

Back

Marine Gearbox J300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight, and convenient in dis- and reassembly and maintenance.

Input speed 750-2500r/min
Reduction ratio 2.04、2.54、3.0、3.47 Trans. capacity 0.280kw/r/min
3.95 0.257kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 60KN
Center distance 264mm
L×W×H 786×930×864mm
Net weight 740kg
Flywheel 12V135、12V150、SAE18、16、14
Bell housing 12V135、12V150、SAE0、1

Marine Gearbox J300 is suitable for fishing, tug and various engineering and transport boats.
