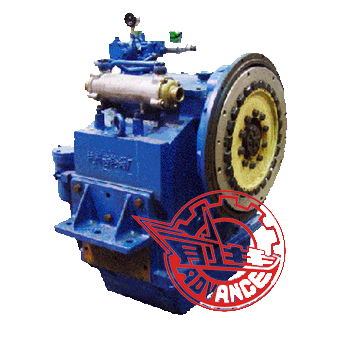

Marine Gearbox MB270A

Browse similar products

Previous Page : Marine Gearbox MB242

Next : Marine Gearbox T300/1

  • Product Name: Marine Gearbox MB270A

Back

Marine Gearbox MB270A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight and convenient in dis- and reassembly and maintenance.

Input speed 1000-2500r/min
Reduction ratio 4.05、4.53、5.12 Trans. capacity 0.147kw/r/min
5.50 0.134kw/r/min
5.95 0.110kw/r/min
6.39、6.82 0.088kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 39.2KN
Center distance 270mm
L×W×H 594×810×868mm
Net weight 675kg
Flywheel SAE18、16、14
Bell housing SAE0、1

Marine Gearbox MB270A is suitable for medium and small fishing, transport, tug, traffic and passenger boats.
