  • Product Name: Marine Gearbox T300/1

Back

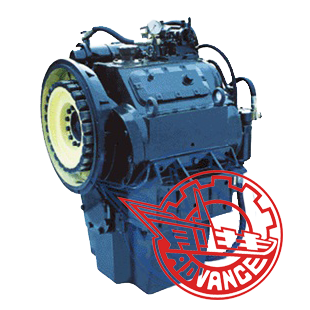

Marine Gearbox T300/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, larger in ratio, light in weight and convenient in dis- and reassembly and maintenance.

Input speed 1000-2300r/min
Reduction ratio 8.94、9.45 Trans. capacity 0.196kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 70KN
Center distance 355mm
L×W×H 772×980×1106mm
Net weight 1120kg
Flywheel SAE18、16、14
Bell housing SAE0、1

Marine Gearbox T300/1 is suitable for fishing, tug, and various engineering and transport boats.
