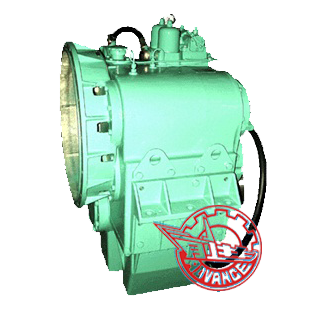

Marine Gearbox HCT400A/1

Browse similar products

Previous Page : Marine Gearbox HCT2000

Next : Marine Gearbox HCT400A

  • Product Name: Marine Gearbox HCT400A/1

Back

Marine Gearbox HCT400A/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, larger ratio, and higher loading capacity.

Input speed 1000-2100r/min
Reduction ratio 8.15、8.69、9.27 Trans. capacity 0.331kw/r/min
9.94 0.316 kw/r/min
10.60 0.297kw/r/min
11.37 0.274 kw/r/min
12.00 0.262 kw/r/min
14.00 0.204 kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 120KN
Center distance 465mm
L×W×H 869×1100×1275mm
Net weight 1500kg
Flywheel SAE18、16、14
Bell housing SAE0、1

Marine Gearbox HCT400A/1 is suitable for fishing, tug and various engineering and transport boats.

Tel: 0571-83802268 / 83802269

download attachments :
