  • Product Name: Marine Gearbox HCT2000

Back

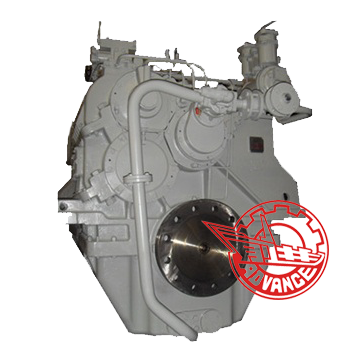

Marine Gearbox HCT2000 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 600-1500r/min
Reduction ratio 5.185、5.494、5.943、
6.583、7.012、7.483、8		 Trans. capacity 1.48kw/r/min
8.57 1.42kw/r/min
8.843 1.34kw/r/min
9.428 1.23kw/r/min
10.05 1.21kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 280KN
Center distance 625mm
L×W×H 1284x1600x1835mm
Net weight 5600kg
Flywheel Depend on engine flywheel
Bell housing NO

Marine Gearbox HCT2000 is suitable for large fishing, tug and various engineering boats.
