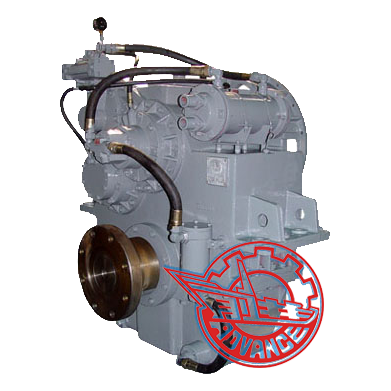

Marine Gearbox HCT600A

Browse similar products

Previous Page : Marine Gearbox HCT600A/1

Next : Marine Gearbox HCT800/1

  • Product Name: Marine Gearbox HCT600A

Back

Marine Gearbox HCT600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, light in weight and large in ratio.

Input speed 1000-2100r/min
Reduction ratio 6.06 Trans. capacity 0.44kw/r/min
6.49 0.40kw/r/min
6.97，7.51 0.37kw/r/min
8.04 0.33kw/r/min
8.66 0.29kw/r/min
9.35 0.28kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 90KN
Center distance 415mm
L×W×H 805×1094×1271mm
Net weight 1650kg
Flywheel SAE18、16、14
Bell housing SAE00、0

Marine Gearbox HCT600A is suitable for fishing, tug and various engineering and transport boats.
