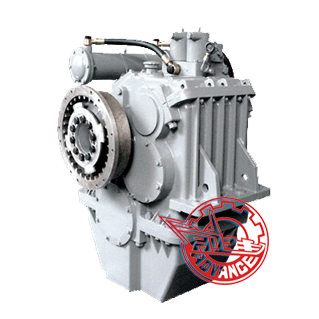

Marine Gearbox HCT800/1

Browse similar products

Previous Page : Marine Gearbox HCT600A

Next : Marine Gearbox HCT800/3

  • Product Name: Marine Gearbox HCT800/1

Back

Marine Gearbox HCT800/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact structure, larger ratio and convenient in dis- and reassembly and maintenance.

Input speed

600-1800r/min

Reduction ratio

6.91、7.28、7.69、8.12、8.60、9.12、9.68

Trans. capacity

0.625kw/r/min

10.30

0.609kw/r/min

10.98

0.575kw/r/min

11.76

0.549kw/r/min

12.43

0.520kw/r/min

13.17

0.491kw/r/min

13.97

0.463kw/r/min

14.85

0.435kw/r/min

15.82

0.408kw/r/min

16.58

0.382kw/r/min

17.91

0.378kw/r/min

20.1

0.278kw/r/min
Control way

Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust

220KN
Center distance

582mm
L×W×H

1152x1360x1557mm
Net weight

3200kg
Flywheel

SAE21、18、16
Bell housing

SAE00、0

Marine Gearbox HCT800/1 is suitable for fishing, tug and various engineering boats.
