  • Product Name: Marine Gearbox HCT800/3

Back

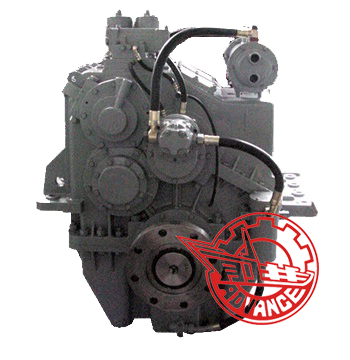

Marine Gearbox HCT800/3 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact structure, larger ratio, higher loading capacity and convenient in dis- and reassembly and maintenance.

Input speed 800-1800r/min
Reduction ratio 16.56 Trans. capacity 0.597kw/r/min
17.95 0.551kw/r/min
20.2 0.491kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 240KN
Center distance 736mm
L×W×H 1235x1570x1789mm
Net weight 4200kg
Flywheel SAE21、18、16
Bell housing SAE00、0

Marine Gearbox HCT800/3 is suitable for fishing, tug and various engineering boats.
