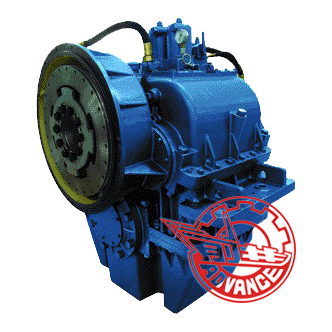

Marine Gearbox HCD800

Browse similar products

Previous Page : Marine Gearbox HCD600A

Next : Marine Gearbox HCT1100

  • Product Name: Marine Gearbox HCD800

Back

Marine Gearbox HCD800 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 600-1800r/min
Reduction ratio 3.0、3.429、3.960、4.167、4.391 Trans. capacity 0.625kw/r/min
4.905 0.588kw/r/min
5.474 0.551kw/r/min
5.889 0.515kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 110KN
Center distance 450mm
L×W×H 1056x1280x1341mm
Net weight 2200kg
Flywheel SAE21、18、16
Bell housing SAE00、0

Marine Gearbox HCD800 is suitable for fishing, tug and various engineering and transport boats.
