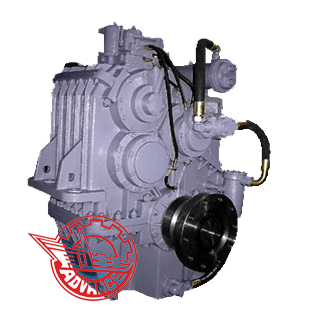

Marine Gearbox HCT1100

Browse similar products

Previous Page : Marine Gearbox HCD800

Next : Marine Gearbox HCT1200

  • Product Name: Marine Gearbox HCT1100

Back

Marine Gearbox HCT1100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 700-1800r/min
Reduction ratio 4.94、5.60、5.98、6.39 Trans. capacity 0.846kw/r/min
6.85 0.835kw/r/min
7.35 0.772kw/r/min
7.90 0.736kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 150KN
Center distance 500mm
L×W×H 1150x1350x1547mm
Net weight 3000kg
Flywheel Depend on engine flywheel
Bell housing SAE00 0

Marine Gearbox HCT1100 is suitable for fishing, tug and various engineering boats.
