  • Product Name: Marine Gearbox HCT1200

Back

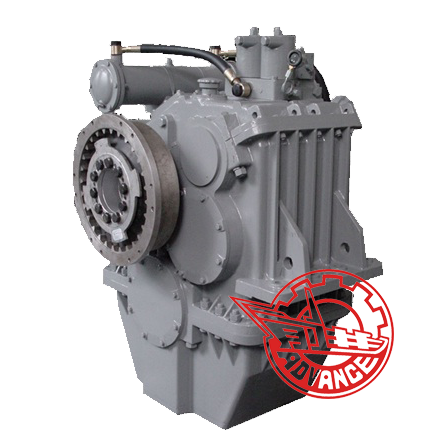

Marine Gearbox HCT1200 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 700-1600r/min
Reduction ratio 5.05、5.60、5.98、6.39、
6.85、7.35、7.90		 Trans. capacity 0.93kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 150KN
Center distance 500mm
L×W×H 1188*1350*1547mm
Net weight 3050kg
Flywheel Depend on engine flywheel
Bell housing SAE00 0

Marine Gearbox HCT1200 is suitable for fishing, tug and various engineering boats.
