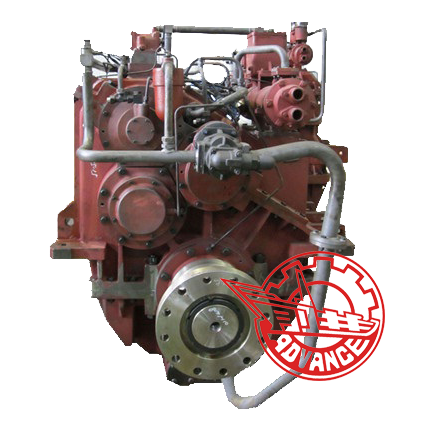

Marine Gearbox HCT1400

Browse similar products

Previous Page : Marine Gearbox HCT1200

Next : Marine Gearbox HCT1600

  • Product Name: Marine Gearbox HCT1400

Back

Marine Gearbox HCT1400 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Input speed 600-1800r/min
Reduction ratio 4、4.511、5.03、5.52、5.97、
6.48、7.03、7.50、8.01		 Trans. capacity 1.03kw/r/min
8.465 1kw/r/min
8.593 0.96kw/r/min
8.984 0.93kw/r/min
9.118 0.90kw/r/min
9.552 0.85kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 220KN
Center distance 550mm
L×W×H 1306x1380x1750mm
Net weight 3700kg
Flywheel Depend on engine flywheel
Bell housing No

Marine Gearbox HCT1400 is suitable for fishing, tug and various engineering boats.
